Jigs & Fixtures

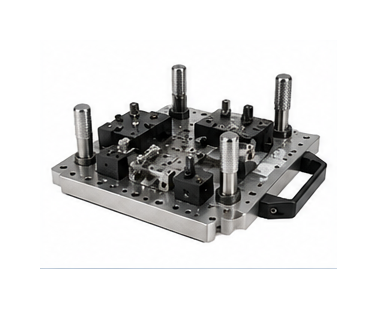

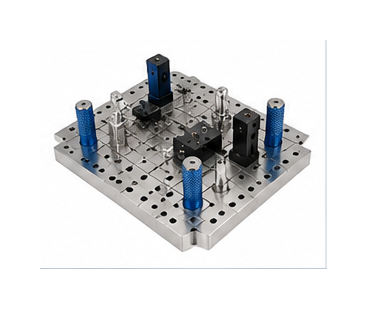

Positioning Jigs
Used to locate a workpiece against fixed datum references before machining, assembly, or inspection. It improves repeatability, positioning accuracy, and production efficiency.
Get Instant QuoteAvailable Materials for Positioning Jigs
aluminum alloy, stainless steel, tool steel/hardened steel, POM/nylon, brass, locating pins and bushings. Surface treatment can include anodizing, black oxide, nickel plating, or heat treatment.
Industry Applications
CNC machining, automation equipment, automotive parts, electronics, semiconductor, medical devices, and precision assembly.
Positioning Jigs Design Guidelines
Have a Similar Project?
Send us your drawings or specifications for a fast evaluation and quotation.
